3K Big Fueler

3K Big Fueler is built with a rock-solid structural integrity that can withstand high volume usage year after year. Our simple two-moving parts meter rated at 70GPM (265LPM) can handle tens of millions of gallons delivering at extreme accuracy for you and your fuel customer.

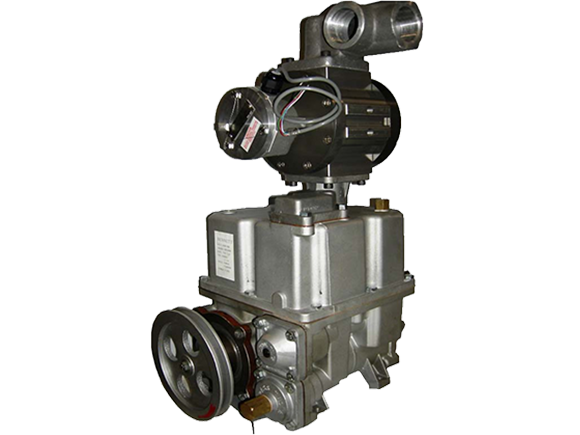

T-140 Pumping Unit & FPP Meter

The Bennett T-140 pumping unit and ultra-high flow FPP meter are a standard in all Bennett Big Fueler dispensers and deliver up to 40gpm on suction models and 60gp.

Big Fueler Features

High or Low Hose Styling
2-Board Electronic
Suction Pumps up to 40-gpm
Remote Dispensers up to 60-gpm*
Heavy-Duty, Tamper-Proof Pulser Enclosed in Meter Housing
Dual Spin-on 30 Micron Filters
Retail or Commercial Models
Interfaces with Point of Sale and Fleet Card Systems
Heavy-Duty Metal Electronics Fold-Down Door Provides Easy and Secure Access
Full-Sized Companion Satellites in Single or Dual Configuration

* Flow rates are nominal rates under test conditions. Actual rates will vary subject to installation conditions, hanging hardware used and submerged pump (if applicable). Flow rates shown for remotes are for master and satellite combined simultaneous flow.

Big Fueler Options

Marina Options

Fuel dispensers are designed to handle the harsh marine environment and weather.

DEF Combo

If you’re interested in dispensing Diesel and DEF, you can add a DEF cabinet to the Big Fueler dispenser.
See 400 Series DEF for more information

Local Preset

Local preset payment option is available for volume or money on all electronic Big Fueler dispensers.

Merchandizing 7″ Display

EMV-R: 7 Widescreen display with soft keys, Hybrid Chip EMV Card Reader, PCI Compliant EMV ready EPP, High Speed Receipt Printer.

Full-EMV: Full EMV payment with 7” Display (require dispenser hub board and in-store hub box)
Credit-Alpha: 7” Widescreen display with soft keys, Dual Side Credit/Fleet Card Reader, Alphanumeric Pin-Pad, High Speed Receipt Printer
Credit-Numeric: Numeric Credit Only Payment
Audio: Media Kit with External Audio for 7” Displays
NFC
Local Preset

Third Party Fleet System Integration

Any fleet system or fidelity module can be easily integrated into this series thru a modular door.

Big Fueler Model Arrangements

Master

One Product Configuration – Master

Master / Satellite

1 Product – Master / Satellite Configuration

Master / Master

2 Product Configuration – Master / Master

2 Product – Master / Satellite

2 Product Configuration – Master / Satellite, Master / Satellite

Big Fueler Technical Information

Specifications

Dimensions	Low Hose Standard Chassis: 30″w x 60″h x 20″d / 91.44cm w x 152.4cm h x 50.8cm d High Hose Standard Chassis: 30″w x 88″h* x 20″d / 96.52cm w x 228.7cm h x 50.8cm d
Products	Up to 2 Products
Hoses	Up to 2 Hoses Per Side (4 in total)
Unit Type	Straight Grade Only
Hydraulics	Suction or Remote
Voltage	120/240 VAC, 50/60Hz single phase 380 VAC, 50Hz three phase
Flow Rate	Suction: 40gpm* / 150lpm* Remote: 60gpm* / 230 lpm*
Inlet / Outlet	2″ (5cm) dia NPT
Protocol	Bennett Open Protocol Generic (Wayne Protocol) RS485

Displays

Sales Display	LCD 8-Digit 1″ (2.54cm) Tall Numbers
Volume Display	LCD 8-Digit 1″ (2.54cm) Tall Numbers
Price Per UD	LCD 5-Digit .5″ (1.27cm) Tall Numbers
Backlight	LED Backlight – Low Power Consumption
Totalizers	7-Digit Electro-Mechanical Totalizer – 1 Per Hose Electronic Non-Resettable Totals – 8.3 for Volume, 9.2 for Money

Approvals & Environmental

Approvals	UL, Weights and Measures, NOM 185-SCFI-2017 NOM 005-SCFI-2017
Operating Temperature Range	-30°C to +70°C
Humidity	0 to 95% Non-Condensing
