Retail & Commercial 3000 Series

The most versatile model in the industry; design a robust chassis, the 3000 series offers different configuration to fulfill any customer needs worldwide.

3K Standard Flow

Retail or Commercial Fleet Fueling

The most comprehensive product line in the industry.

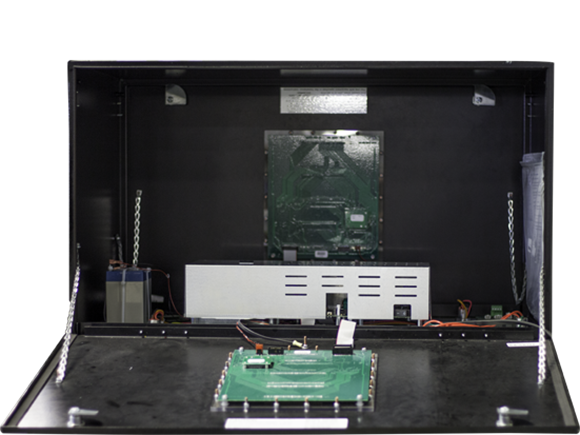

X19 Surface Mount Electronics

The X19 single board, conformal coated, surface mount electronics are significantly more efficient and provide more processing power. These electronics only draw 1.03 Amps of power during flow and only .71 Amps when idle. This is less power draw than a normal 100-watt light bulb.

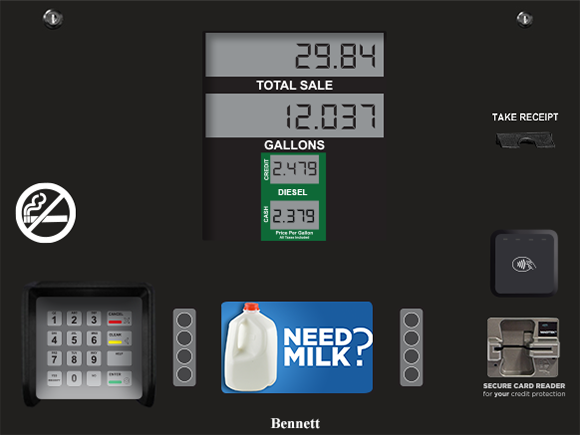

Merchandizing Screen

A color 7.5” Screen will provide a source of interaction with your customer since you own all the media content.

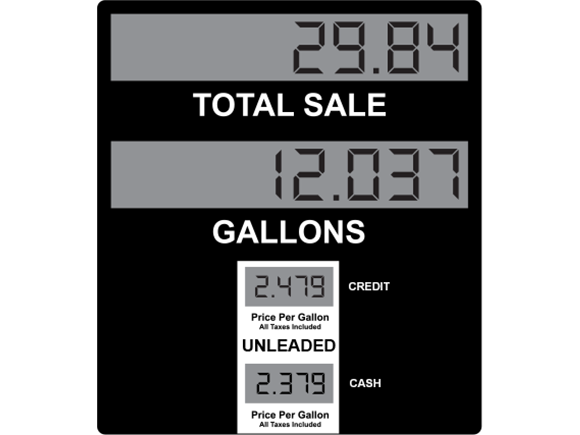

2-Tier Pricing

An optional feature of the X19 electronics is 2-tier price displays for cash and credit or rewards-based pricing.

3000 Options

Payment Options

A variety of payment options are available for front mounted 3000 series dispensers depending on your needs.

EMV-R: 7″ Widescreen display with soft keys, Audio: Media Kit with External Audio for 7″ Displays
Third Party Payment solution for Fleet Systems
Local Preset

Stainless Steel

Optional stainless-steel packages for doors, end panels, top cover, electronic cover assembly, hinged upper doors and grade panel area.

Features

1, 2 and 4 hose configurations with the option of “Active 4” models
Low Hose or High Hose,
Side Mount or Front Mount Nozzle Boots,
Single tier or Two-Tier Price Displays,
Electro-Mechanical Totalizers,
Junction Box,
Pulse Output Board,
Automatic Temperature Compensation,
Intercom Speaker, Intercom Speaker with Call Button,
Custom Graphics, Valance (high hose models)
Third Party Fleet modules integration.

3000 Series Technical Information

Specifications

Dimensions	Low Hose Standard Chassis: 30″w x 60″h x 20″d / 91.44cm w x 152.4cm h x 50.8cm d High Hose Standard Chassis: 30″w x 88″h* x 20″d / 96.52cm w x 228.7cm h x 50.8cm d
Products	Up to 2 Products Per Side
Hoses	Up to 2 Hoses Per Side
Unit Type	Straight Grade Only
Hydraulics	Suction or Remote
Voltage	120/240 VAC, 50/60Hz single phase 380 VAC, 50 Hz three phase
Flow Rate	18-23gpm / 68-87lpm
Inlet / Outlet	1.5″ (3.8cm) dia NPT / 1″ (2.54cm) dia NPT standard Flow 2” (5 cm) dia NPT/ 1 ¼” (3.2 cm) dia NPT
Protocol	Bennett Current Loop Protocol Generic (Wayne) RS485

Displays

Sales Display	LCD 8-Digit 1″ (2.54cm) Tall Numbers
Volume Display	LCD 8-Digit 1″ (2.54cm) Tall Numbers
Price Per UD	LCD 5-Digit ½” (1.27cm) Tall Numbers
Backlight	LED Backlight – Low Power Consumption
Totalizers	7-Digit Electro-Mechanical Totalizer – 1 Per Hose Electronic Non-Resettable Totals – 8.3 for Volume, 9.2 for Money

Approvals & Environmental

Approvals	UL87, Weights and Measures, NOM 185-SCFI-2017 NOM 005-SCFI-2017
Operating Temperature Range	-30°C to +70C
Humidity	0 to 95% Non-Condensing
