Blue Fueler

The Bennett 100 and 200 Blue Fueler Models are a class of Weights and Measures (NIST) approved DEF dispensers designed for use in commercial and retail locations where demanding users require durability, ruggedness and affordability. The Blue Fueler Models are based on world-class engineering providing users with a solid return on investment.

100 & 200 Models

Weights and Measures (NIST) approved DEF meter to ensure precise fluid measurement.
Small footprint (132cm x 33cm x 28cm), ideal for use with barrels, totes and above ground and underground storage systems
Stainless steel rotary meter, with only two moving parts, provides maximum durability and reliability.
Interfaces to commercial cardlock and retail point-of-sale systems
Single board electronic design for highest reliability and low cost of ownership
LED back lighting, energy efficient and long lasting
Low tote or tank indicator light (available in suction units only)
For use in non-hazardous locations for use between -10° – 32°C

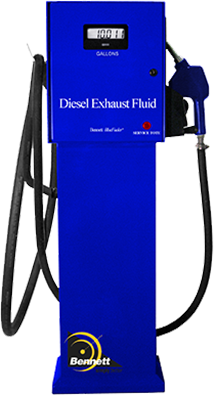

Commercial Models

110R – 40 LPM remote, commercial (volume-only)

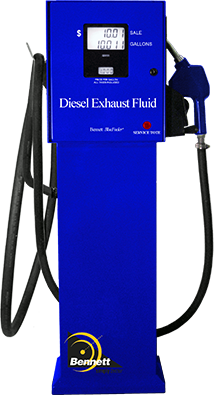

Retail Models

210R – 40 LPM remote, retail (money and volume)

Blue Fueler Technical Information

Specifications

Dimensions	13″w x 52″h x 11″d / 33cm w x 132cm h x 28cm d
Products	1 Product
Hoses	1 Hose
Unit Type	Straight Grade Only
Hydraulics	Remote
Voltage	120/230 VAC, 50/60Hz
Flow Rate	2-10gpm / 7-38lpm
Inlet / Outlet	1″ / 2.54cm
Protocol	Bennett Open Protocol / Generic / RS485

Displays

Sales Display	LCD 8-Digit 1″ (2.54cm) Tall Numbers
Volume Display	LCD 8-Digit 1″ (2.54cm) Tall Numbers
Price Per UD	LCD 5-Digit .5″ (1.27cm) Tall Numbers
Backlight	LED Backlight – Low Power Consumption
Totalizers	7-Digit Electro-Mechanical Totalizer – 1 Per Hose Electronic Non-Resettable Totals – 8.3 for Volume, 9.2 for Money
Display Options	Can be configured to have one display per side (Island Orientation)

Approvals & Environmental

Approvals	Weights and Measures
Operating Temperature Range	For use in non-hazardous locations for use between -10°C to +32°C
